Oak Frame Construction

Designing oak frame buildings is a blend of ancient craft, modern engineering and aesthetic vision. It's a specialized field that appeals to those who appreciate the natural beauty, durability, and sustainability of timber construction.

What is Oak Frame Construction?

At its core, oak frame construction uses large, carefully selected pieces of green (unseasoned or slightly seasoned) oak timber to form the primary structural skeleton of a building. These timbers are traditionally joined together using a system of mortise and tenon joints, secured with wooden pegs (often oak or ash) rather than metal fasteners. The frame is then erected and enclosed with infill panels, glazing, or other materials.

Key Principles and Considerations:

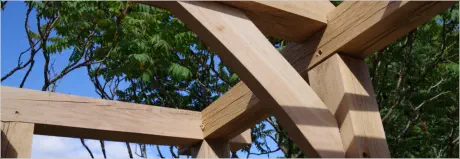

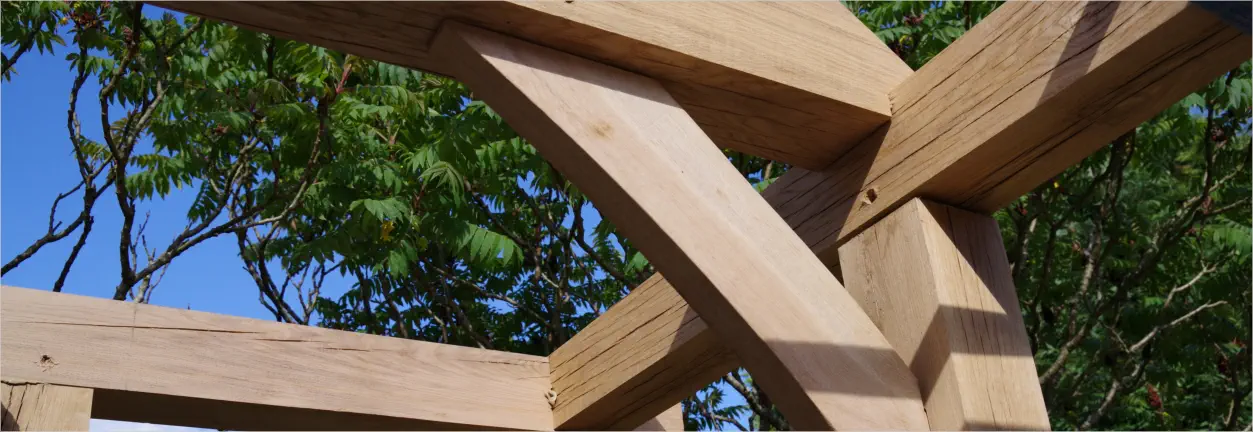

1. Material Selection: Green Oak • Why Green? Oak is notoriously hard when seasoned (dried). Using "green" or unseasoned oak (typically felled within the last 12-18 months) allows the timbers to be cut, jointed and assembled more easily. • Shrinkage and Movement: As green oak dries, it will naturally shrink, twist and crack (shake). A good design accounts for this movement. The pegging of mortise and tenon joints tightens as the timber shrinks, creating a remarkably strong connection. Shakes are a natural characteristic and don't compromise structural integrity. • Sourcing: Sustainable sourcing from managed forests (often in Europe or the UK) is crucial. 2. Structural Integrity and Engineering: • Load Bearing: The oak frame is inherently load-bearing, carrying the weight of the roof and upper floors. • Bracing: Diagonal braces are essential for resisting lateral forces (wind, seismic activity) and preventing racking. The placement of these braces is both structural and aesthetic. • Connection Details: The design of each joint (mortise and tenon, scarf joints for long spans, dovetails, etc.) is critical. Joinery is highly skilled and often done by hand or with specialized machinery. • Interfacing with Other Materials: Careful consideration must be given to how the oak frame interfaces with foundations, infill panels (whether SIPs, insulated panels, or traditional wattle and daub), glazing systems, roofing, and services. Differential movement between the shrinking oak and other materials is a key design challenge. 3. Architectural Design and Aesthetics: • Exposed Timber: The beauty of oak framing lies in the exposed timber structure, both internally and often externally. This dictates an aesthetic that celebrates the material. • Proportion and Scale: Designing with large timbers requires an understanding of scale and proportion. Rooms often have high ceilings to accommodate the frame. • Light: Large expanses of glazing are often incorporated between the frame members to maximize natural light and showcase the frame. • Style: While traditionally associated with rustic or medieval aesthetics, modern oak frame buildings can be incredibly contemporary, blending clean lines with the warmth of timber. • Layout: The structural grid of the frame often influences the internal layout and room divisions. 4. Enclosure Systems (Infill): • SIPs (Structural Insulated Panels): Very common now. These are factory-made panels of insulation sandwiched between two layers of OSB or similar. They are cut to fit snugly into the bays of the oak frame, providing excellent thermal performance and a quick enclosure. They offer a modern, airtight solution. • Traditional Infill: Historically, infill could be wattle and daub, brick or stone. While less common for the entire enclosure in modern builds due to thermal performance challenges, these can be used for aesthetic feature panels. • Glazing: Large, often bespoke, glazing units are designed to fit within the oak frame, allowing the frame to remain visible. 5. Thermal Performance and Sustainability: • Insulation: While the oak frame itself isn't highly insulating, modern oak frame buildings achieve excellent thermal performance through the use of high-performance infill systems (like SIPs), good airtightness detailing, and quality glazing. • Sustainability: Oak is a renewable resource, and if sourced from sustainably managed forests, oak frame construction has a relatively low embodied energy compared to steel or concrete. The long lifespan of oak buildings also contributes to their sustainability.

The Design Process:

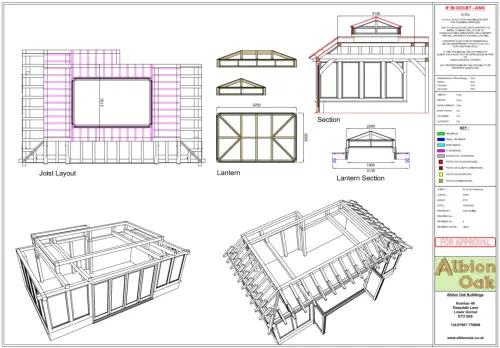

1. Client Brief and Site Analysis: Understanding the client's needs, budget, and the site's characteristics (orientation, views, access). 2. Concept Design: Sketching ideas, exploring layouts and developing the overall aesthetic. This stage heavily considers how the oak frame will define spaces. 3. Structural Design: Detailed calculations by a structural engineer to ensure the frame can withstand all loads. This includes timber sizing, joint design and bracing requirements. 4. Architectural Detailing: Designing how the oak frame integrates with windows, doors, roofing, floors and services. This is crucial for weatherproofing, thermal performance and managing timber movement. 5. Timber Frame Design/Joinery Drawings: Highly specialized drawings produced by the timber frame company, detailing every cut, joint and peg hole. These are often produced using CAD/CAM software to ensure precision. 6. Manufacture and Assembly: The frame is typically cut and pre- assembled in a workshop before being transported to the site for assembly.

Challenges and Considerations:

• Cost: Oak frame construction can be more expensive upfront than conventional timber frame or masonry builds due to the material cost and specialized craftsmanship. • Settlement and Movement: Managing the natural shrinkage and movement of the oak is paramount to avoid issues with finishes, glazing and services. • Lead Times: Sourcing suitable oak and the intricate joinery process can mean longer lead times. • Specialist Skills: Requires experienced oak framers, designers and builders who understand the nuances of the material.
